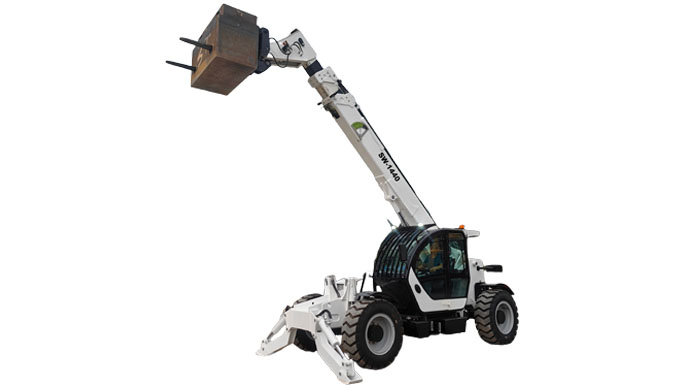

SW1440 Telehandler
Product Introduction
1. Compact structure, flexible operation, stable lifting, automatic leveling, high net load load index, and precise fork transportation;
2. CUMMINS engine, low noise, low emission, strong power and large torque reserve;
3. Equipped with a torque limit system to meet the needs of extreme working conditions and ensure operational safety;
4. The fork leveling adopts the automatic flow compensation technology to realize the automatic control of the fork level during the luffing process of the boom to ensure the stability and safety of the high-position fork lift;
5. It has the function of horizontal leveling of the frame, and has strong site adaptability to meet the needs of complex working conditions;
6. Four-wheel drive, with two-wheel steering, four-wheel steering and crab steering mode, strong off-road capability, suitable for different working situations;
7. Advanced human-computer interaction system, instrument monitoring and alarm system are fully functional and easy to operate;
8. The full hydraulic wet braking system can be selected, the braking is stable and reliable, and the driving safety is ensured;
9. Imported dedicated fully electronically controlled gearbox and axle can be selected, with compact structure and high transmission efficiency;
10. It can be configured with high-altitude platforms, buckets and other tools to meet the individual needs of users.
- Parameter
- Features
- Service
Rated load额定载荷 | kg | 4000 | ||
Overall weight 整机重量 | KG | 12050 | ||
Maximum lift height最大举升高度 | mm | 13550 | ||
Maximum reach最大前伸距 | mm | 9220 | ||
Maximum traction force最大牵引力 | kn | ≥70 | ||
Minimum ground clearance最小离地间隙 | mm | 410 | ||
Overall dimensions(L×W×H)整机外形尺寸（长×宽×高） | mm | 6080×2430×2550 | ||
Minimum width (with hydraulic outriggers fully open) 最大宽度（液压支腿完全打开） | mm | 3800 | ||
Wheelbase轴距 | mm | 3670 | ||
Axle track轮距 | mm | 1990 | ||
Rear wheel center to rear后轮中心至尾部 | mm | 1240 | ||
Turning radius (outer wheel)转弯半径（外轮） | mm | ≤4500 | ||
Maximum travel speed最大行驶速度 | km/h | 30 | ||
Tire model轮胎型号 | / | 16.8-24真空轮胎 | ||
Steering type转向方式 | / | 4 wheel drive 四轮驱动, 3 steering modes三种转向模式 Front Wheel Steering前轮转向 Crab Steering蟹行转向 Four Wheel Steering四轮转向 | ||
Transmission type传动方式 | / | Closed piston pump + walking motor + gearbox + drive axle 闭式柱塞泵+行走马达+变速箱+驱动桥 | ||
Service brake行车制动 | / | Oil-immersed multi-disc hydraulic brake[Disc Brake] 油浸多盘式液压制动[盘式制动] | ||
Parking brake停车制动 | / | Negative braking负制动 | ||
Weight (with forks)重量（带货叉） | kg | 12050 | ||
发动机 Engine | 型号Model | / | YUCHAI YCD4J22T-125 | |
功率Power | kw/r/min | 91/2600 | ||
选配Optional engine | CUMMINS 4BTA3.9-C125（CHINA 2） YUCHAI (EURO5) CUMMINS QSB3.8（EURO3）/CUMMINS QSF3.8(EPA4) | |||
Number of gears (forward/reverse,high/low speed) 挡位数（前进/后退;高速/低速） | / | 4/4 | ||
Gear Control挡位控制 | / | Electronic control电控 | ||
Working hours 工作时间 | Lift举升 | s | 18 | |
Decline下降 | 13 | |||
Outreach外伸 | 17 | |||
Retracted回缩 | 16 | |||
Tipping up (filling)上倾翻（填载） | 5 | |||
Tipping down (unloading)下倾翻（卸载） | 4 | |||
Standard fork (L x W x D)标准货叉尺寸（长x宽x厚） | mm | 1200 x 125 x 50 | ||
Hydraulic control system液压控制系统 | / | Multifunctional centralized handle[Overload Protection System] 多功能集中式手柄[过载保护系统] | ||
Frame leveling车架校平 | / | +/- 9° | ||
