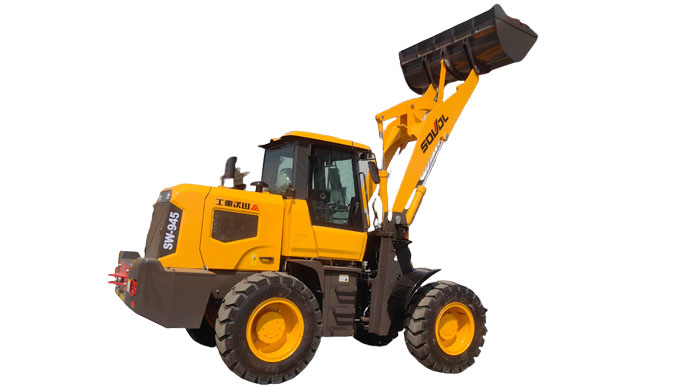

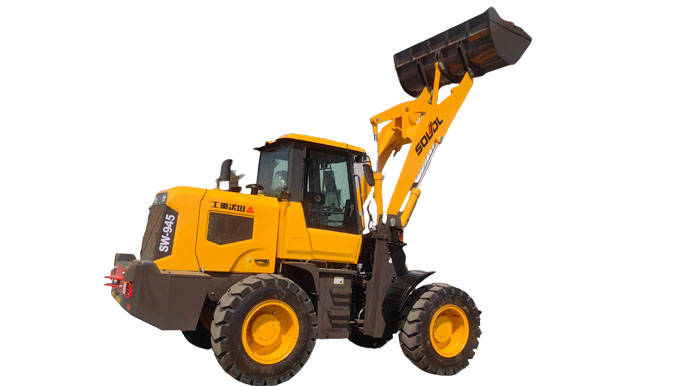

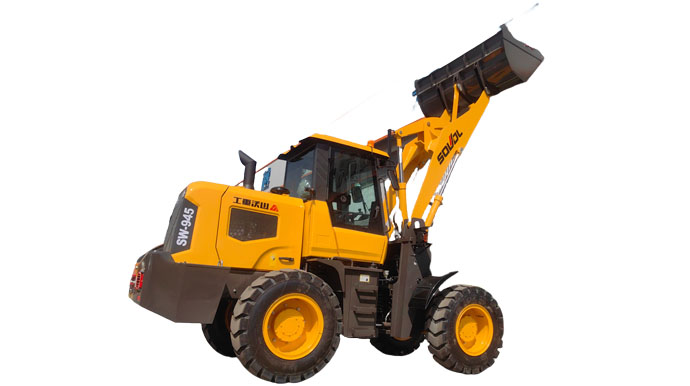

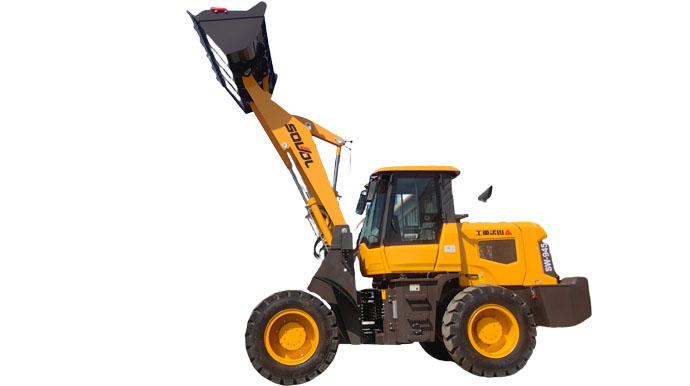

SW-945装载机
Product Introduction
- Parameter
- Features
- Service
| 产品型号/参数 | ITEM | SW-945 |
| 额定载荷（kg） | Rated load | 2000 |
| 卸载高度 (mm) | Dumping height | 3600 |
| 卸载距离 (mm) | Dumping distance | 1100 |
| 发动机型号 | Engine model | YN48GBZ |
| 额定功率 (kw) | Rated power | 92 |
| 变速型式 | Transmission type | 280 |
| 驱动桥型号 | Axle type | Big hub |
| 轮胎参数 | Tire type | 16/70-24 |
| 整机质量 (kg) | Operating weight | 6000 |
| 外形尺寸 (mm) | Overall dimension | 7100*2135*2850 |
| 最小转弯半径 (mm) | Min. turning radius | 5900 |
