ABOUT US
Shandong Sovol Heavy Machinery CO.,LTD is located in one of the ancient Kyushu beautiful Qingzhou, Shandong Province, is China Technical Supervision Information Association as the loader excellent quality assured brand enterprises. Companies follow the"quality of survival, reputation and development "purposes, Shandong Province, "the contract, the word" enterprise, passed the ISO9001:2000 international standard quality management system certification, China special equipment manufacturing license units Shandong Province was named civilized enterprise. Sound marketing and service network to ensure that the user uses "Sovol Heavy" convenient, safe, secure. Foreign business groups have come to order, a variety of products have been exported to overseas.
PRODUCTS
SW-945装载机
| 产品型号/参数 | ITEM | SW-945 |
| 额定载荷（kg） | Rated load | 2000 |
| 卸载高度 (mm) | Dumping height | 3600 |
| 卸载距离 (mm) | Dumping distance | 1100 |
| 发动机型号 | Engine model | YN48GBZ |
| 额定功率 (kw) | Rated power | 92 |
| 变速型式 | Transmission type | 280 |
| 驱动桥型号 | Axle type | Big hub |
| 轮胎参数 | Tire type | 16/70-24 |
| 整机质量 (kg) | Operating weight | 6000 |
| 外形尺寸 (mm) | Overall dimension | 7100*2135*2850 |
| 最小转弯半径 (mm) | Min. turning radius | 5900 |
SW-948装载机
| 产品型号/参数 | ITEM | SW-948 |
| 额定载荷（kg） | Rated load | 2500 |
| 卸载高度 (mm) | Dumping height | 3800 |
| 卸载距离 (mm) | Dumping distance | 800 |
| 发动机型号 | Engine model | WP6G125E22 |
| 额定功率 (kw) | Rated power | 92 |
| 变速型式 | Transmission type | 315 |
| 驱动桥型号 | Axle type | 2.8ton axle |
| 轮胎参数 | Tire type | 17.5-25 |
| 整机质量 (kg) | Operating weight | 8000 |
| 外形尺寸 (mm) | Overall dimension | 7300*2400*3120 |
| 最小转弯半径 (mm) | Min. turning radius | 6000 |
SW-942装载机
| 产品型号/参数 | ITEM | SW-942 |
| 额定载荷（kg） | Rated load | 1500 |
| 卸载高度 (mm) | Dumping height | 3500 |
| 卸载距离 (mm) | Dumping distance | 1100 |
| 发动机型号 | Engine model | YN38GBZ |
| 额定功率 (kw) | Rated power | 76 |
| 变速型式 | Transmission type | 265 |
| 驱动桥型号 | Axle type | Middle hub |
| 轮胎参数 | Tire type | 16/70-20 |
| 整机质量 (kg) | Operating weight | 5500 |
| 外形尺寸 (mm) | Overall dimension | 6300*2135*2850 |
| 最小转弯半径 (mm) | Min. turning radius | 5900 |
SW-936装载机
| 产品型号/参数 | ITEM | SW-936 |
| 额定载荷（kg） | Rated load | 1000 |
| 卸载高度 (mm) | Dumping height | 3200 |
| 卸载距离 (mm) | Dumping distance | 1000 |
| 发动机型号 | Engine model | YN27GBZ |
| 额定功率 (kw) | Rated power | 58 |
| 变速型式 | Transmission type | 265 |
| 驱动桥型号 | Axle type | Small hub |
| 轮胎参数 | Tire type | 20.5/70-16 |
| 整机质量 (kg) | Operating weight | 3800 |
| 外形尺寸 (mm) | Overall dimension | 5600*2000*2750 |
| 最小转弯半径 (mm) | Min. turning radius | 5400 |
SW-926装载机
| 产品型号/参数 | ITEM | SW-926 |
| 额定载荷（kg） | Rated load | 600 |
| 卸载高度 (mm) | Dumping height | 2900 |
| 卸载距离 (mm) | Dumping distance | 900 |
| 发动机型号 | Engine model | YN27 |
| 额定功率 (kw) | Rated power | 37 |
| 变速型式 | Transmission type | 240 |
| 驱动桥型号 | Axle type | 130 axle |
| 轮胎参数 | Tire type | 20.5-16 |
| 整机质量 (kg) | Operating weight | 3500 |
| 外形尺寸 (mm) | Overall dimension | 5400*2000*2730 |
| 最小转弯半径 (mm) | Min. turning radius | 5000 |
SW3507 Telehandler
Rated load额定载荷 | kg | 3500 | ||
Overall weight 整机重量 | KG | 7500 | ||
Maximum lift height最大举升高度 | mm | 7000 | ||
Maximum reach最大水平延伸 | mm | 3900 | ||
Maximum traction force最大牵引力 | kn | ≥70 | ||
Minimum ground clearance最小离地间隙 | mm | 410 | ||
Overall dimensions(L×W×H)整机外形尺寸（长×宽×高） | mm | 5100×2250×2500 | ||
Minimum width (with hydraulic outriggers fully open) 最大宽度（液压支腿完全打开） | mm | 2250 | ||
Wheelbase轴距 | mm | 3400 | ||
Axle track轮距 | mm | 1820 | ||
Rear wheel center to rear后轮中心至尾部 | mm | 1140 | ||
Turning radius (outer wheel)转弯半径（外轮） | mm | ≤4500 | ||
Maximum travel speed最大行驶速度 | km/h | 30 | ||
Tire model轮胎型号 | / | 16/7024真空轮胎 | ||
Steering type转向方式 | / | 4 wheel drive 四轮驱动, 3 steering modes三种转向模式 Front Wheel Steering前轮转向 Crab Steering蟹行转向 Four Wheel Steering四轮转向 | ||
Transmission type传动方式 | / | Closed piston pump + walking motor + gearbox + drive axle 闭式柱塞泵+行走马达+变速箱+驱动桥 | ||
Service brake行车制动 | / | Oil-immersed multi-disc hydraulic brake[Disc Brake] 油浸多盘式液压制动[盘式制动] | ||
Parking brake停车制动 | / | Negative braking负制动 | ||
Weight (with forks)重量（带货叉） | kg | 7500 | ||
发动机 Engine | 型号Model | / | YUCHAI YCD4J22T-125 | |
功率Power | kw/r/min | 91/2600 | ||
选配Optional engine | CUMMINS 4BTA3.9-C125（CHINA 2） YUCHAI (EURO5) CUMMINS QSB3.8（EURO3）/CUMMINS QSF3.8(EPA4) | |||
Number of gears (forward/reverse,high/low speed) 挡位数（前进/后退;高速/低速） | / | 4/4 | ||
Gear Control挡位控制 | / | Electronic control电控 | ||
Working hours 工作时间 | Lift举升 | s | 18 | |
Decline下降 | 13 | |||
Outreach外伸 | 17 | |||
Retracted回缩 | 16 | |||
Tipping up (filling)上倾翻（填载） | 5 | |||
Tipping down (unloading)下倾翻（卸载） | 4 | |||
Standard fork (L x W x D)标准货叉尺寸（长x宽x厚） | mm | 1200 x 125 x 50 | ||
Hydraulic control system液压控制系统 | / | Multifunctional centralized handle[Overload Protection System] 多功能集中式手柄[过载保护系统] | ||
Frame leveling车架校平 | / | +/- 9° | ||

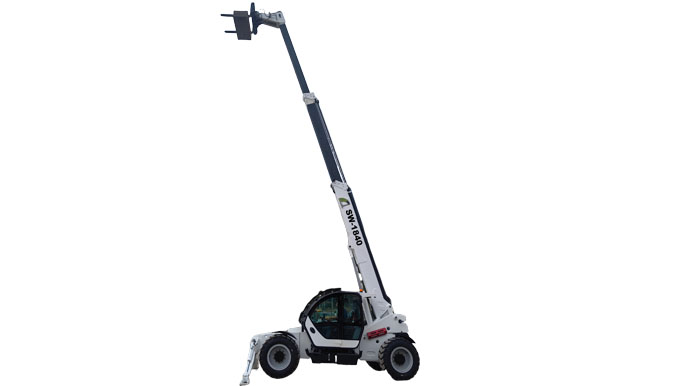

SW1840 Telehandler
Rated load额定载荷 | kg | 4000 | ||
Overall weight 整机重量 | KG | 13500 | ||
Maximum lift height最大举升高度 | mm | 17550 | ||
Maximum reach最大前伸距 | mm | 13080 | ||
Maximum traction force最大牵引力 | kn | ≥70 | ||
Minimum ground clearance最小离地间隙 | mm | 420 | ||
Overall dimensions(L×W×H)整机外形尺寸（长×宽×高） | mm | 6970×2430×2550 | ||
Minimum width (with hydraulic outriggers fully open) 最大宽度（液压支腿完全打开） | mm | 3800 | ||
Wheelbase轴距 | mm | 3670 | ||
Axle track轮距 | mm | 1990 | ||
Rear wheel center to rear后轮中心至尾部 | mm | 1240 | ||
Turning radius (outer wheel)转弯半径（外轮） | mm | ≤4500 | ||
Maximum travel speed最大行驶速度 | km/h | 30 | ||
Tire model轮胎型号 | / | 16.8-24真空轮胎 | ||
Steering type转向方式 | / | 4 wheel drive 四轮驱动, 3 steering modes三种转向模式 Front Wheel Steering前轮转向 Crab Steering蟹行转向 Four Wheel Steering四轮转向 | ||
Transmission type传动方式 | / | Closed piston pump + walking motor + gearbox + drive axle 闭式柱塞泵+行走马达+变速箱+驱动桥 | ||
Service brake行车制动 | / | Oil-immersed multi-disc hydraulic brake[Disc Brake] 油浸多盘式液压制动[盘式制动] | ||
Parking brake停车制动 | / | Negative braking负制动 | ||
Weight (with forks)重量（带货叉） | kg | 13500 | ||
发动机 Engine | 型号Model | / | YUCHAI YCD4J22T-125 | |
功率Power | kw/r/min | 91/2600 | ||
选配Optional engine | CUMMINS 4BTA3.9-C125（CHINA 2） YUCHAI (EURO5) CUMMINS QSB3.8（EURO3）/CUMMINS QSF3.8(EPA4) | |||
Number of gears (forward/reverse,high/low speed) 挡位数（前进/后退;高速/低速） | / | 4/4 | ||
Gear Control挡位控制 | / | Electronic control电控 | ||
Working hours 工作时间 | Lift举升 | s | 18 | |
Decline下降 | 13 | |||
Outreach外伸 | 17 | |||
Retracted回缩 | 16 | |||
Tipping up (filling)上倾翻（填载） | 5 | |||
Tipping down (unloading)下倾翻（卸载） | 4 | |||
Standard fork (L x W x D)标准货叉尺寸（长x宽x厚） | mm | 1200 x 125 x 50 | ||
Hydraulic control system液压控制系统 | / | Multifunctional centralized handle[Overload Protection System] 多功能集中式手柄[过载保护系统] | ||
Frame leveling车架校平 | / | +/- 9° | ||
SW1440 Telehandler
Rated load额定载荷 | kg | 4000 | ||
Overall weight 整机重量 | KG | 12050 | ||
Maximum lift height最大举升高度 | mm | 13550 | ||
Maximum reach最大前伸距 | mm | 9220 | ||
Maximum traction force最大牵引力 | kn | ≥70 | ||
Minimum ground clearance最小离地间隙 | mm | 410 | ||
Overall dimensions(L×W×H)整机外形尺寸（长×宽×高） | mm | 6080×2430×2550 | ||
Minimum width (with hydraulic outriggers fully open) 最大宽度（液压支腿完全打开） | mm | 3800 | ||
Wheelbase轴距 | mm | 3670 | ||
Axle track轮距 | mm | 1990 | ||
Rear wheel center to rear后轮中心至尾部 | mm | 1240 | ||
Turning radius (outer wheel)转弯半径（外轮） | mm | ≤4500 | ||
Maximum travel speed最大行驶速度 | km/h | 30 | ||
Tire model轮胎型号 | / | 16.8-24真空轮胎 | ||
Steering type转向方式 | / | 4 wheel drive 四轮驱动, 3 steering modes三种转向模式 Front Wheel Steering前轮转向 Crab Steering蟹行转向 Four Wheel Steering四轮转向 | ||
Transmission type传动方式 | / | Closed piston pump + walking motor + gearbox + drive axle 闭式柱塞泵+行走马达+变速箱+驱动桥 | ||
Service brake行车制动 | / | Oil-immersed multi-disc hydraulic brake[Disc Brake] 油浸多盘式液压制动[盘式制动] | ||
Parking brake停车制动 | / | Negative braking负制动 | ||
Weight (with forks)重量（带货叉） | kg | 12050 | ||
发动机 Engine | 型号Model | / | YUCHAI YCD4J22T-125 | |
功率Power | kw/r/min | 91/2600 | ||
选配Optional engine | CUMMINS 4BTA3.9-C125（CHINA 2） YUCHAI (EURO5) CUMMINS QSB3.8（EURO3）/CUMMINS QSF3.8(EPA4) | |||
Number of gears (forward/reverse,high/low speed) 挡位数（前进/后退;高速/低速） | / | 4/4 | ||
Gear Control挡位控制 | / | Electronic control电控 | ||
Working hours 工作时间 | Lift举升 | s | 18 | |
Decline下降 | 13 | |||
Outreach外伸 | 17 | |||
Retracted回缩 | 16 | |||
Tipping up (filling)上倾翻（填载） | 5 | |||
Tipping down (unloading)下倾翻（卸载） | 4 | |||
Standard fork (L x W x D)标准货叉尺寸（长x宽x厚） | mm | 1200 x 125 x 50 | ||
Hydraulic control system液压控制系统 | / | Multifunctional centralized handle[Overload Protection System] 多功能集中式手柄[过载保护系统] | ||
Frame leveling车架校平 | / | +/- 9° | ||
